Description
This HSTORMB listing is for an independent replacement battery matching the M4605A reference used by selected Philips IntelliVue patient monitors. The model list below comes from Philips’ accessory catalog; the photographed pack is supplier-supplied, and its markings should be compared with your existing battery before purchase.

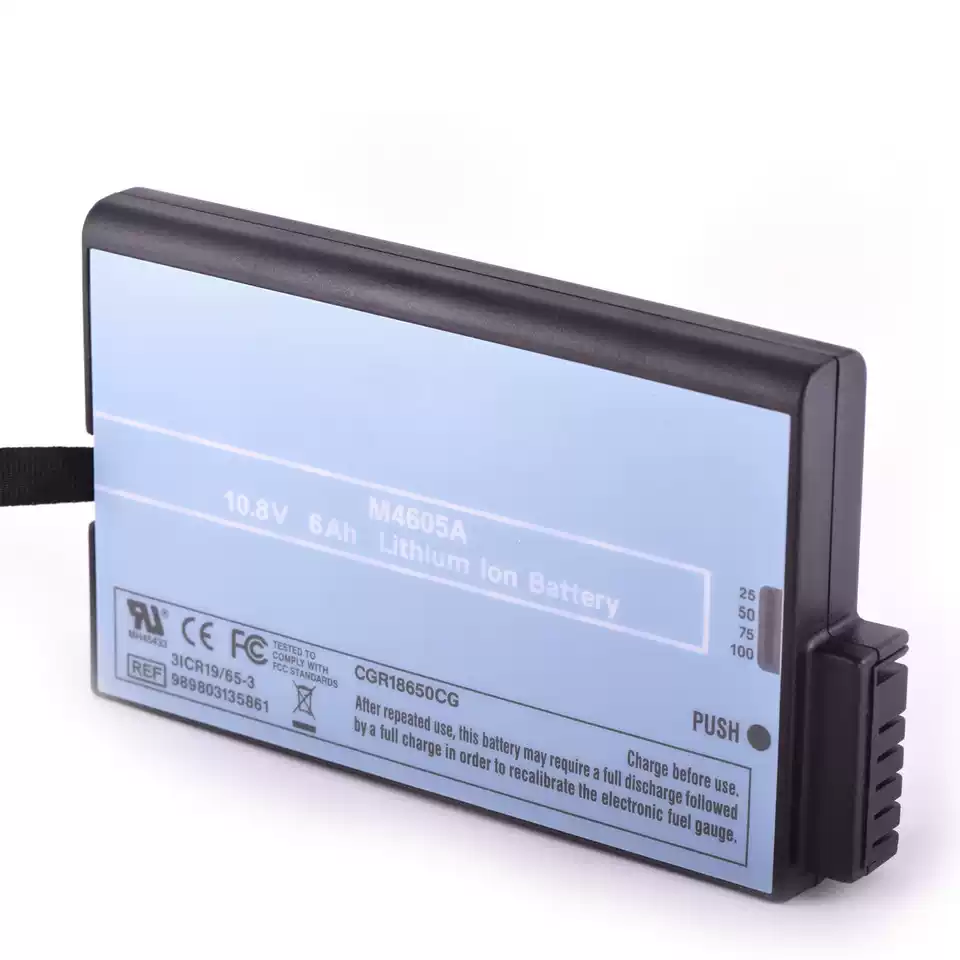

Details visible in the supplier photograph
The photographed pack is marked M4605A, 10.8 V, 6 Ah, and “Lithium Ion Battery.” A second label reads REF 989803135861. Its pull tab and side contact block are visible. These are observations of the photograph, not an independent measurement, proof of Philips manufacture, or a guarantee about every shipment lot. Philips’ catalog confirms M4605A as a battery reference; the pictured secondary REF has not been independently cross-verified against Philips documentation.
Which monitor family does Philips list?
Philips’ patient-monitoring accessories catalog lists the M4605A rechargeable 10.8 V lithium-ion battery for IntelliVue MP20, MP30, MP40, MP50 and several other specifically named monitors. The supplier’s original title also mentioned MP70 and MP90, but those models are not in the M4605A row of that Philips catalog. We have removed them from the supported model list here; do not infer fit for MP70 or MP90 without the original battery reference and device-specific documentation.
Before ordering and returning a monitor to service
Match the complete part number on your old pack, monitor model and revision, chemistry, nominal voltage, case geometry, rails, contact layout, and latch. If anything differs, send clear photos of the old battery and monitor label for a manual check before ordering. Follow your equipment service procedure for installation, charging, recognition, alarms and off-patient testing. Philips is named to identify the monitor family; this independent product is not represented as made or approved by Philips.
